Fully Automatic Potato Crisps Production Line|Potato Chips Making Machine
This potato crisps production line is mainly used to process potato ships with fresh potatoes, which is suitable for large scale production of potato chips.
click for offer
- Product Description
- Technical Data
Product Description
Introduction of Potato Crisps Production Line
1.The large scale potato chips making machines are made of Stainless Steel 304.
2.For finished product, its capacity is 300kg/h.
3.All bearings are stainless steel bearings, electric are made of Chint Brand or Schneider Brand.
Features of Potato Crisps Production Line
1.This potato chips processing line is automatic from feeding to discharge. It will save labor and realize the automatic.;
2. For Blanching Machine of this line, it is automatic to control the temperature, automatic feeding and automatic discharging.
3.This potato crisp production line are working automatically with high working efficiency.
Working Procedure of Potato Crisps Production Line

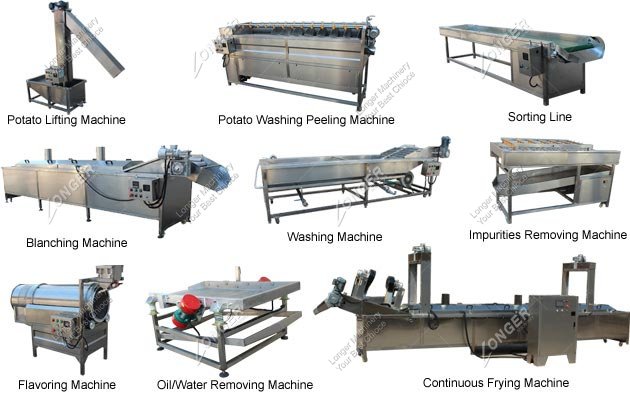

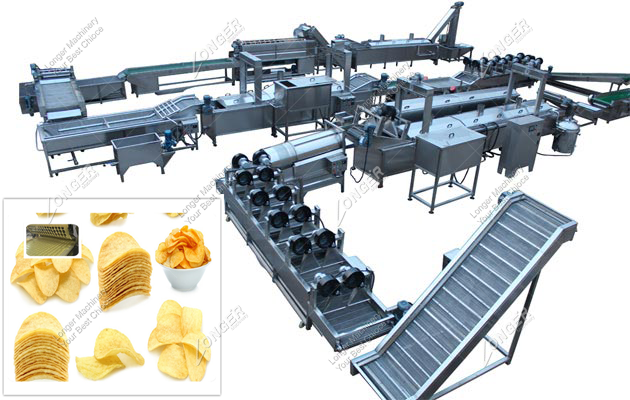

Feeding by Elevator---Cleaning and Peeling---Sorting---Potato Chips Cutting---Rinsing Machine---Blanching---Air Dewatering---Fryer Machine---Vibrate De-oil Machine---Air Drying Machine---Snacks Flavoring Machine
Technical Data
|
Item
|
Power
|
Dimension
|
|
Elevator
|
0.75kw/380v/50Hz
|
2000*800*1600mm
|
|
Cleaning and Peeling Machine
|
4.75kw/380v/50Hz
|
3100*900*1500mm
|
|
Sorting Conveyor
|
0.75kw/380v/50Hz
|
3000*900*900mm
|
|
Potato Chips Cutting Machine
|
1.1kw/380v/50Hz
|
950*800*950mm
|
|
Rinsing Machine
|
5kw/380v/50Hz
|
5000*1600*900mm
|
|
Blanching Machine
|
70kw/380v/50Hz
|
6000*1600*950mm
|
|
Air De-water Machine
|
15kw/380v/50Hz
|
4000*1200*1400mm
|
|
Elevator
|
0.75kw/380v/50hz
|
1500*800*1300mm
|
|
Electric Heating Potato Chips Fryer Machine
|
203kw/380v/50Hz
|
7000*1200*2600mm
|
|
Oil Filter Machine
|
1.5kw/380V
|
1100*600*950mm
|
|
Vibrating De-oil Machine
|
1.5kw/380v/50Hz
|
1500*1000*1300mm
|
|
Air Drying Machine
|
8kw/380v/50Hz
|
4000*1200*1600mm
|
|
Elevator
|
0.75kw/380v/50Hz
|
2000*800*2200mm
|
|
Flavoring Machine
|
1.5kw/380v/50hz
|
2400*1000*1600mm
|
