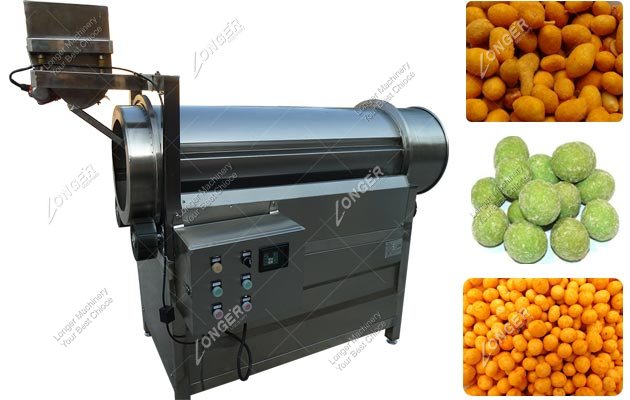

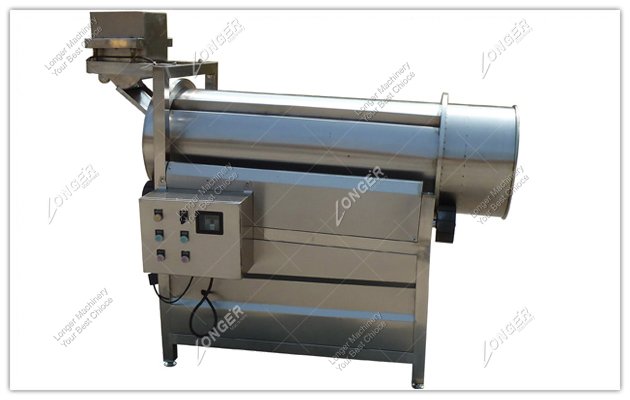

Single-Drum French Fries Flavoring Machine

Description of French fries flavoring machine

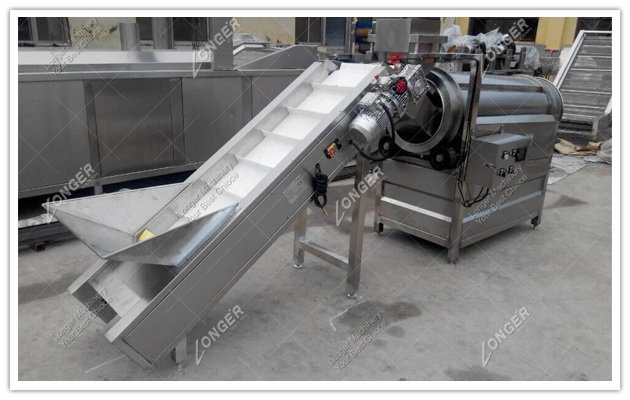

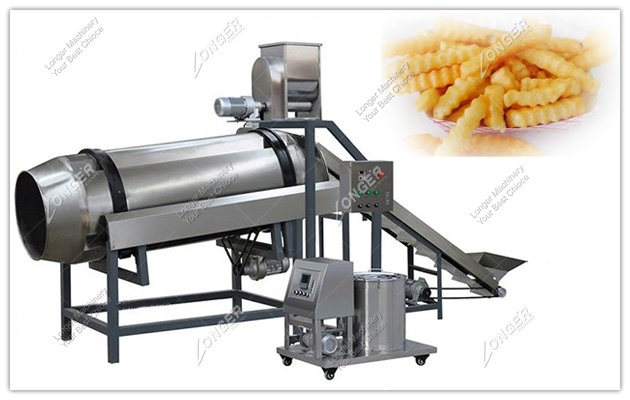

This single-drum French fries flavoring machine is automatic discharge and the amount of flavor is adjustable by the machine.The Feeding system adopts hoister to convey materials.The flavoring material adopts screw fixed conveying,advanced flavoring system guarantee flavored evenly,the speed of screw is adjustable.What’s more,the machine adopts imported oil spray nozzle,and the oil amount is adjustable, it can spray evenly.

Advantage of  French fries flavoring machine

1.This equipment has the Angle type seasoning cylinder,automatic control of speed and the capacity of the materials,suitable for continuity flavor assembly line.

2.It is equipped with spiral feeding device,can independently stir at the same time,and make the seasoning will not occur the different proportion.

3.This flavoring machine is equipped with powder stirring evenly,quantitative accuracy.The product is a collection of magnetic,electric,electronic,digital delay at an organic whole.And it has high degree of automation.

4.There is a flavoring quantity control device on the roller to make sure the flavor spread evenly on snacks.

5.The Rotary roller adopts complete molding, no dead angle inside.

6.Seasoning spray nozzle can adjust the oil amount, spraying equally.

7.Energy Saving.

" />

Application of French fries flavoring machine

This single-drum flavoring machine is mainly used to flavor food,like French fries,peanuts,potato chips,etc.This machine is also applicable to a wide range of extruded snacks,puffed snack,fried snack,fried nuts,pet food,fish feed and fried snacks in coating oil and sugar.

Method of use

1.the structure

The device consists of stents,roller,roller transmission system,powdering system,powder transmission system,board and other major parts

2.operation steps

(1)The device plugged into a power supply, this equipment adopts the 220 v power input,the output roller motor is:380v,dusting motor is 220 v.

(2)Start the roller machine,and roller will slowly start to normal speed. Start dusting motor,dusting equipment begin to work.

(3)Continuously artificial feed raw material into the machine or put mix seasoning ingredients from feeding port to conveyor.

(4)Open powdering motor,make the seasoning evenly spray in the cylinder;

(5)Check the running parts, start working after ensuring normal operation.

(6)If speed is too high,the inventer can be rotate knob to the left,slow speed variable,the minimum not less than 70% of the highest speed

(7)Material inside the drum moves forward quickly,can reduce roller Angle,to slow higher roller angle.
